VOLVO
Test Track: RAF Bentwaters, Suffolk. August
1998
Vehicle fitted with Tyron wheel safety bands.
|
|
|
|
|
LAND
ROVER 90
British Army Specification (Wolf)
Test Track: Driving Standards Agency (DSA),
Bedfordshire. 31st March 1999.
Vehicle fitted with Tyron Extended Runflat
System 'Standard' system.
|
|
|
|
|
VAUXHALL VECTRA 1.8 Estate
Test Track: Driving Standards Agency (DSA),
Bedfordshire. 31st March 1999.
Vehicle fitted with Tyron wheel safety
bands.
|
|
|
|
|
CARAVAN
Tes Trackt: Bruntingthorpe Test Track,
Leicestershire.
Vehicles fitted with Tyron wheel safety bands.
|
|
|
|
|
|
|
IVECO
EUROTECH 400E 340
Tractor Unit with Articulated Trailer fully laden to 38 tons Gross
Vehicle Weight
Test Track: Worminghall Airfield,
Oxfordshire.
Vehicle fitted with Tyron wheel safety bands.
|
|
|
|
|
IVECO
SUPER CARGO
Fully
Laden 16 tones.
Test Track: Driving Standards Agency (DSA),
Bedfordshire. 31st March 1999.
Vehicle fitted with Tyron Extended Runflat
System 'Standard' system.
|
|
|
|
|
RENAULT
ARTICULATED TRUCK
Laden to 30 tons Gross Weight
Test Track: Driving Standards Agency (DSA),
Bedfordshire. 15th July 1998.
Vehicle fitted with Tyron wheel safety bands.
|
|
|
|
|
OFFICIAL
TESTS
TYRON BAND
TEST - PART NUMBER 22.5/75 |
|
Date of
test: |
12th May
1993 |
|
Venue: |
Worminghall
airfield, near Thame, Oxon. |
|
Track
surface: |
Old concrete
runway. Rough surface - partially breaking up. |
|
Vehicle: |
Iveco Eurotech
400E 340 4 x 2 tractor unit with articulated trailer. |
|
Weight: |
17 tonnes GVW,
38 tonnes GCW. |
|
Trailer: |
Fully laden to
Gross vehicle weight for test at 32 tonnes. |
|
Tyre
size: |
295/80R 22.5
tubeless. |
|
Wheel: |
Single piece
steel drop centre. |
|
Weight/load on
tested wheel (nearside & offside front): |
3.9 tonnes (3,900kg) |
|
Weather
conditions: |
Warm, dry,
sunny, light breeze. |
| |
|
|
|
|
¸ðµç
ÀϹݵµ·Î¸¦
¹þ¾î³
½Ã³ª¸®¿À¿¡
½ÃÇèÀº
·£µå·Î¹Ù·Î
¶ÇÇÑ
±¹Á¦
ÀϹݵµ·Î¸¦
¹þ¾î³
Champion Vince Cobley¿¡
ÀÇÇØ
¿î¿ëµÇ¾ú´Ù. Tyron ´ë¿ªÀ»
¼¼°èÀû
¾×¼¼¼¸®·Î
ÇÏ°í
ÀÖ´Â
Rover Group¸¦
ÃÊ·¡Çß´Ù.
Tyron
¹êµå´Â
¾î¶²
ȯ°æÀ̶óµµ
¸²
À§¿¡¼
ŸÀ̾
À¯ÁöÇÑ´Ù´Â °ÍÀÌ
Áõ¸íµÇ¾ú´Ù.
¸ðµç
¼Óµµ¿¡
±×¸®°í
¾î¶²
ÁöÇü
¿¡¼¶óµµ
ÀÎÀå°ú
Â÷·®
ÅëÁ¦¸¦
Á¦°øÇß´Ù. Millbrook ½ÃÇè Æ®·¢ À§¿¡¼ 120 mph±îÁö °í¼ÓÀÌ¾î ·¹ÀÎÁö ·Î¹ö¿¡¼ ¼öÇàµÈ TyronÀº ÃÖ´ë °æµµ¿¡ ±â¿ï¾îÁø´Ù-½ÉÇØ, ÀÌÅä¿Í ÇÁ·Î-Trax ±â´É¿¡¼ÀÇ °í¼Ó ¿ÀÇÁ·Îµù¿¡ ÀÖ¾î¼ ·£µå·Î¹Ù¿¡¼ Á¤Áö/½ÃÀÛ ½ÃÇèÀ» Æ÷ÇÔÇÏ´Â °ÍÀº Æ®·¢À» Å×½ºÆ®ÇÑ´Ù
Opposite: Vince Cobley
(Pro-Trax). |
|
|
|
|
|
|
|
|
|
RENAULT
Production model - Ambulance
Test Track: Driving Standards Agency (DSA),
Bedfordshire. 15th July 1998.
Vehicle fitted with Tyron Extended Runflat
System 'Standard' system.
|
|
|
|
|
VOLVO/EXCALIBUR FIRE APPLIANCE
Fully laden (approximately 13
tons).
Test Track: The Fire Service College, Moreton-in-Marsh,
Gloucestershire.
April 7th 1998. Vehicle fitted with Tyron wheel safety
bands. |
|
|
|

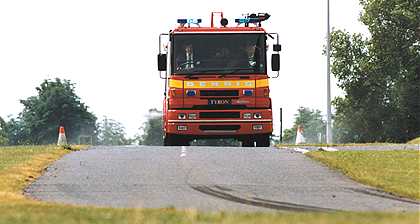

| Blow-out Trial on Dennis Fire
Appliance | |
|
Sabre, Type B Water
Tender, fully laden in controlled blow-out at 60 mph. |
|
TRIAL Objectives:
To
carry out an induced blow-out at 60 mph. then complete and observe the following
tests.
|
|
| |
|
|
| a. |
Vehicle
stability and capability to continue in a straight line, during and after the
blow-out. |
| b. |
Driver to
report any difficulty in controlling the vehicle, plus the steering effort
required. | |
|
|
| c. |
Test cornering
capability on the deflated tyre through:
Long 180 deg. left turn @ 60
mph.
Left hand 'T' turn @ 20 mph.
Long 90 deg. right turn @ 60
mph.
Right hand 'T' turn @ 20 mph. |
| d. |
Swerve and
slalom tests, to check the effects of violent weight transfer on the fully laden
vehicle. | |
|
|
| e. |
Emergency stop.
Check ability of the TYRON band to lock the tyre to the wheel rim. Observe
ability for the vehicle to stop in a straight line, the steering effort required
and degree of driver control. |
| f. |
Carry
out manoeuvrability and parking tests. |
| g. |
Check condition
of the wheel and tyre on completion. |
| h. |
Check for
damage to the vehicle, especially around spray suspension, wheel arch and brake
pipe areas. | | |
|
|
|
Testing
carried out at: The Driving Standards Agency (DSA) Cardington, Bedfordshire,
June 1997, before a live audience of Fire Chiefs and
crewmen. |
|
|
Trial Statistics |
|
Venue |
Driving
Standards Agency, Cardington, Bedfordshire. |
|
Date |
12th June
1997 |
|
Vehicle |
Dennis Fire
Appliance. Sabre Medium Length, Type B Water Tender. |
|
GVW |
13
Tonnes. |
|
Axle
Loads |
Front 5.5
Tonnes, Rear 7.5 Tonnes. |
|
Vehicle
Weight |
12.6
Tonnes. |
|
Wheel
Size |
22.5 x
7.50 |
|
Tyre |
275/70 x 22.5
Michelin. |
|
Drive
Configuration |
Rear Wheel
Drive. |
|
Tyron
Band |
22.5/70
Standard Duty Single Piece. |
|
Wheel Under
Test |
Offside
Front. |
|
Ambient
Temperature |
22 deg.
C. |
|
Track
Surface Temperature |
22.5 deg.
C. |
|
Weather
Conditions |
Dry, Sunshine,
Light Wind. | | |
|
FORD
TRANSIT
Fully
laden (driver + 8 passengers).
Test Track:
RAF Bentwater, Suffolk.
Vehicle fitted with Tyron wheel safety
bands.
|
|
|
|
|
JAGUAR
Police
Specification
Test Track: Driving Standards Agency (DSA),
Bedfordshire. 15th July 1998.
Vehicle fitted with Tyron wheel safety
bands.
|
|
|
|
|
|
|
FORD
MONDEO
Test
Track: Driving Standards Agency (DSA), Bedfordshire. 15th July 1998 Vehicle
fitted with Tyron wheel safety bands.
|
|
|
|
ROLLS ROYCE SILVER SPUR
Test Track:
Driving Standards Agency (DSA), Bedfordshire. 15th July 1998 Vehicle fitted with
Tyron Extended Runflat System 'Standard' system.
|
|
|
|
